Quickstart: Single-Site Monthly Generation¶

This tutorial demonstrates the core SynHydro workflow: load observed data, fit a generator, generate synthetic realizations, and plot the results.

Note: Run this notebook from the examples/ directory. Figures are saved to figures/01_quickstart/ and data outputs to outputs/01_quickstart/ (both are gitignored).

In [1]:

from pathlib import Path

FIG_DIR = Path("figures") / "01_quickstart"
OUT_DIR = Path("outputs") / "01_quickstart"
FIG_DIR.mkdir(parents=True, exist_ok=True)
OUT_DIR.mkdir(parents=True, exist_ok=True)

from pathlib import Path FIG_DIR = Path("figures") / "01_quickstart" OUT_DIR = Path("outputs") / "01_quickstart" FIG_DIR.mkdir(parents=True, exist_ok=True) OUT_DIR.mkdir(parents=True, exist_ok=True)

Load example data¶

In [2]:

import synhydro

Q_daily = synhydro.load_example_data()       # multi-site daily DataFrame
Q_monthly = Q_daily.resample("MS").sum()     # aggregate to monthly
site = Q_monthly.columns[0]                  # pick one site
Q_single = Q_monthly[[site]]                 # keep as DataFrame

import synhydro Q_daily = synhydro.load_example_data() # multi-site daily DataFrame Q_monthly = Q_daily.resample("MS").sum() # aggregate to monthly site = Q_monthly.columns[0] # pick one site Q_single = Q_monthly[[site]] # keep as DataFrame

Fit and generate¶

Every generator follows two steps: fit, generate. ThomasFieringGenerator fits a seasonal AR(1) model to single-site monthly data.

In [3]:

gen = synhydro.ThomasFieringGenerator()
gen.fit(Q_single)
ensemble = gen.generate(n_realizations=50, n_years=30, seed=42)

gen = synhydro.ThomasFieringGenerator() gen.fit(Q_single) ensemble = gen.generate(n_realizations=50, n_years=30, seed=42)

The returned Ensemble contains 50 synthetic 30-year monthly timeseries.

In [4]:

Q_syn_0 = ensemble.data_by_realization[0]
print(Q_syn_0.shape)  # (360, 1) -- 30 years x 12 months

Q_syn_0 = ensemble.data_by_realization[0] print(Q_syn_0.shape) # (360, 1) -- 30 years x 12 months

(360, 1)

Note (Seed reproducibility): Passing the same seed value always produces identical results.

Visualize¶

In [5]:

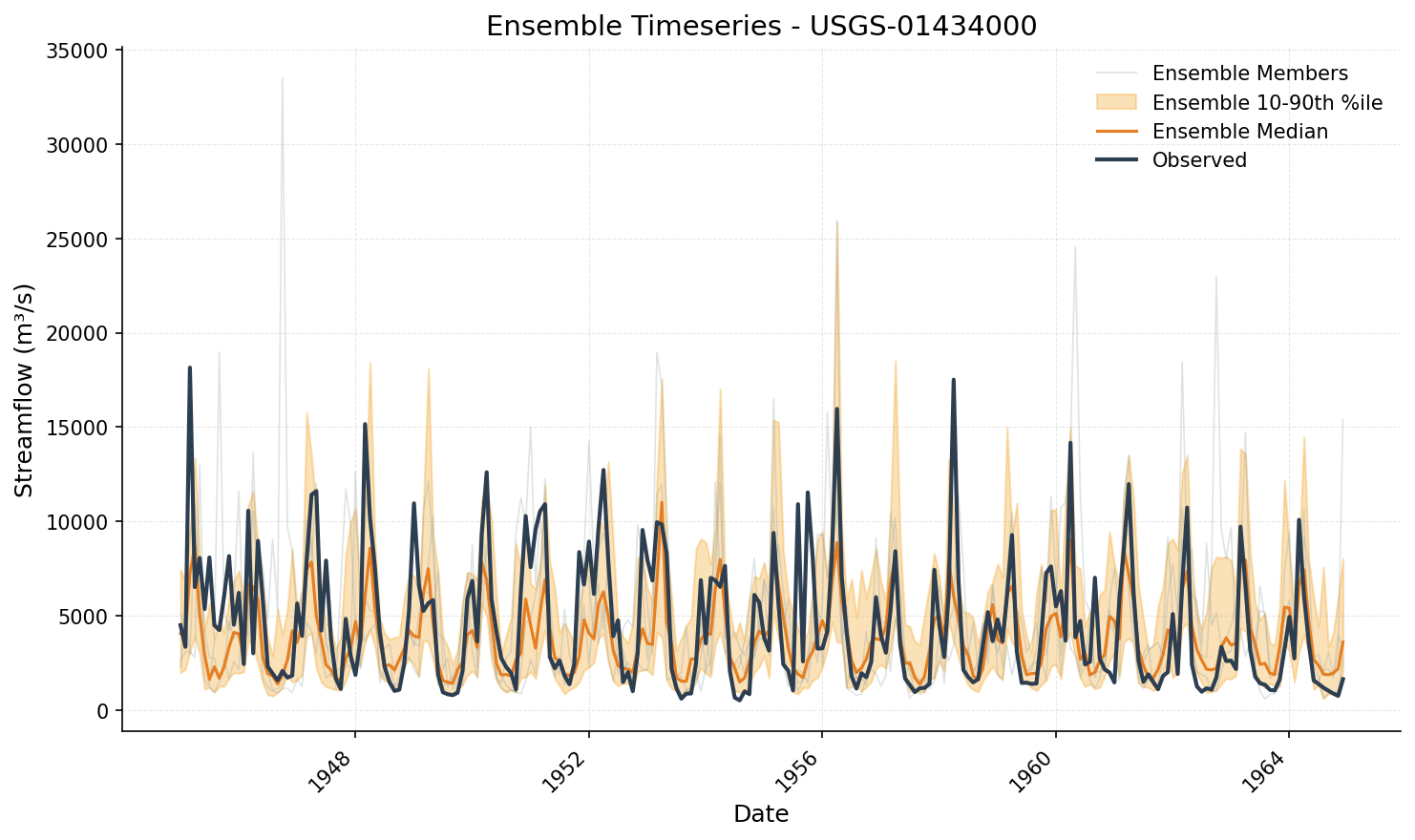

from synhydro.plotting import plot_timeseries, plot_flow_duration_curve

fig, ax = plot_timeseries(
    ensemble,
    observed=Q_monthly[site],
    show_members=3,
)
fig.savefig(FIG_DIR / "timeseries.png", dpi=150, bbox_inches="tight")

from synhydro.plotting import plot_timeseries, plot_flow_duration_curve fig, ax = plot_timeseries( ensemble, observed=Q_monthly[site], show_members=3, ) fig.savefig(FIG_DIR / "timeseries.png", dpi=150, bbox_inches="tight")

In [6]:

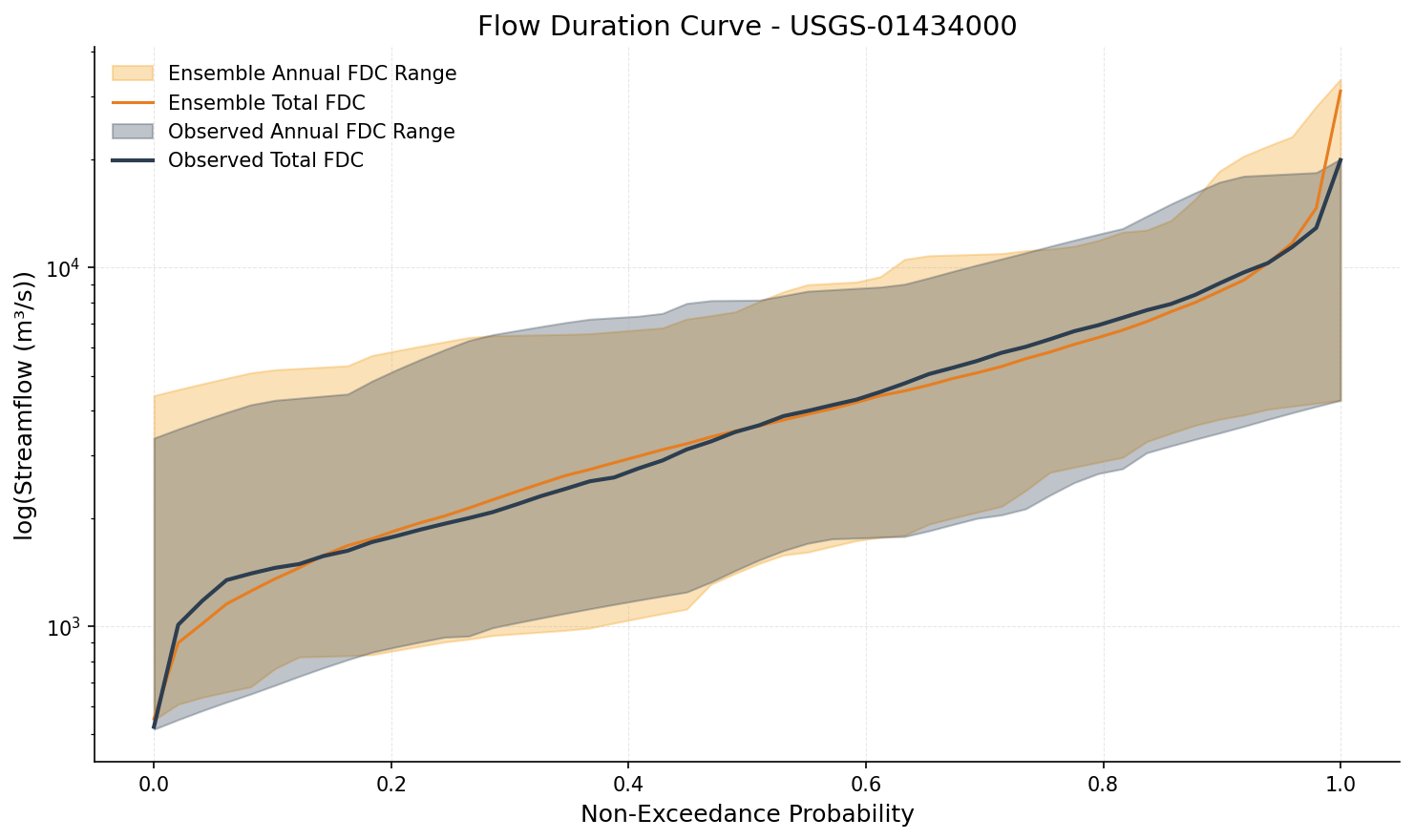

fig, ax = plot_flow_duration_curve(
    ensemble,
    observed=Q_monthly[site],
)
fig.savefig(FIG_DIR / "fdc.png", dpi=150, bbox_inches="tight")

fig, ax = plot_flow_duration_curve( ensemble, observed=Q_monthly[site], ) fig.savefig(FIG_DIR / "fdc.png", dpi=150, bbox_inches="tight")

Next steps¶

• Multi-site generation - Tutorial 02
• Monthly-to-daily disaggregation - Tutorial 03
• Algorithm details - Thomas-Fiering AR(1)

---

Next: Multi-Site Monthly (Kirsch)
