Ensemble Validation

After generating synthetic flows you need to verify that they reproduce the statistical properties of the historical record. validate_ensemble computes a comprehensive suite of metrics comparing the ensemble against observed data.

Setup

import synhydro

Q_daily = synhydro.load_example_data()
Q_monthly = Q_daily.resample("MS").mean()

gen = synhydro.KirschGenerator()
gen.fit(Q_monthly)
ensemble = gen.generate(n_realizations=100, n_years=50, seed=42)

Run validation

validate_ensemble compares the ensemble to observed data across eight metric categories:

Category	What it checks
Marginal	Mean, std, skewness, kurtosis, CV, percentiles, KS test
Temporal	Lag-1/2 autocorrelation, Hurst exponent, ACF RMSE
Spatial	Cross-site correlation RMSE and bias
Drought	Mean/max duration, mean/max severity, frequency
Spectral	Power spectrum RMSE, correlation, low-frequency ratio
Seasonal	Per-month mean/std/skewness bias, Wilcoxon p-values
Annual	Annual mean, variance, skewness, lag-1 ACF, variance ratio
FDC	Flow duration curve RMSE, bias at Q10/Q50/Q90, envelope coverage

result = synhydro.validate_ensemble(ensemble, Q_monthly)

You can also request a subset of categories:

result = synhydro.validate_ensemble(
    ensemble, Q_monthly,
    metrics=["marginal", "seasonal", "fdc"],
)

Explore results

Each metric entry contains the observed value, synthetic median and spread, and relative error:

site = Q_monthly.columns[0]
for metric, values in result.marginal[site].items():
    print(
        f"  {metric:12s}  obs={values['observed']:.3f}  "
        f"syn={values['synthetic_median']:.3f}  "
        f"rel_err={values['relative_error']:.3f}"
    )

Summary scores give a single-number snapshot of generation quality:

for score, value in result.summary.items():
    print(f"  {score}: {value:.4f}")

For further analysis, flatten results into a tidy DataFrame:

df = result.to_dataframe()
df[df["relative_error"].abs() > 0.1]   # flag large errors

Visual validation

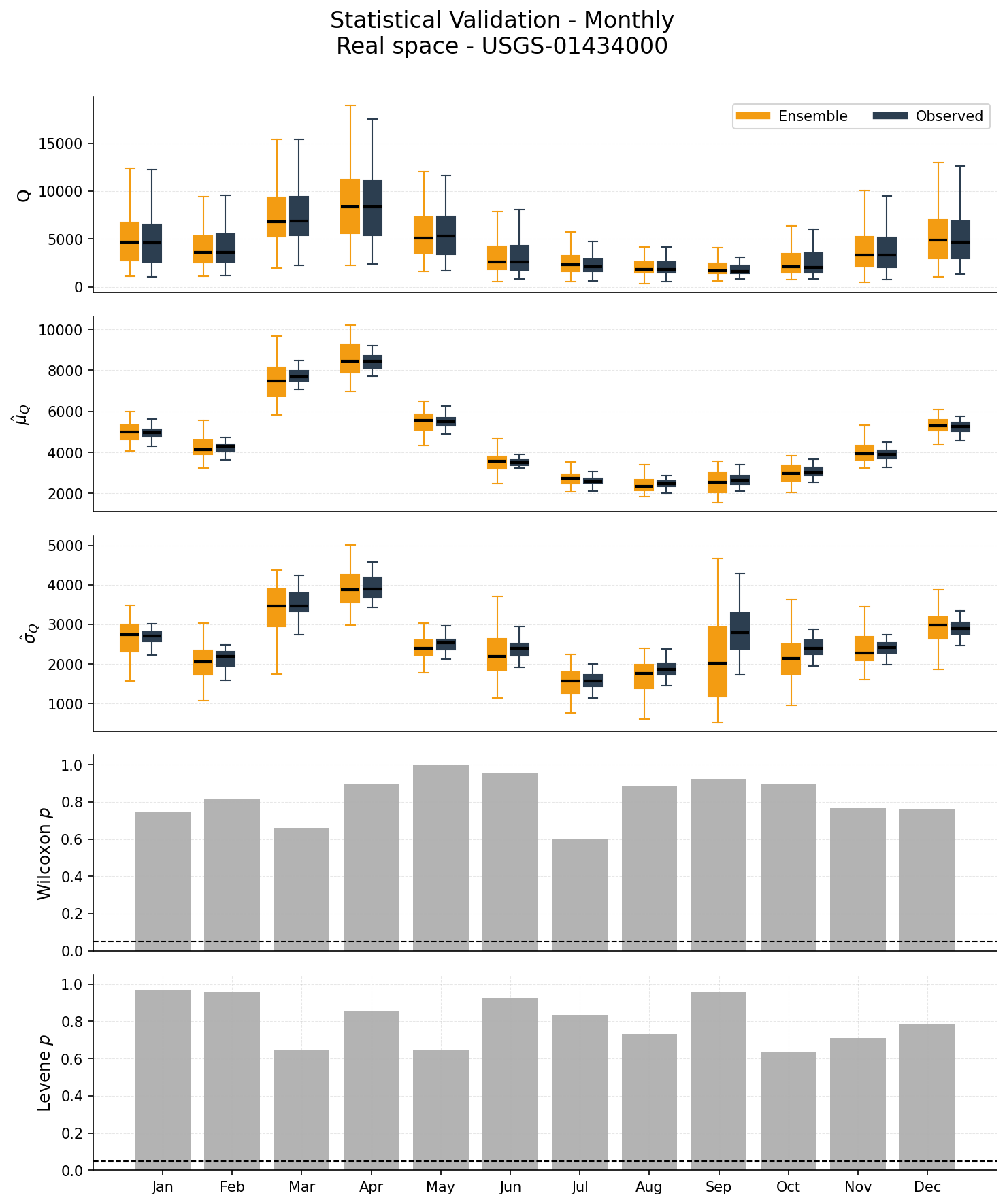

plot_validation_panel produces a 5-panel figure comparing observed and synthetic distributions by month, with Wilcoxon rank-sum and Levene test p-values. Values above the dashed line (p = 0.05) indicate the distributions are statistically indistinguishable.

from synhydro.plotting import plot_validation_panel

fig, axes = plot_validation_panel(
    ensemble,
    observed=Q_monthly[site],
    site=site,
)

Log-space validation

Streamflow is often right-skewed. Validating in log space can reveal differences in the lower tail:

fig, axes = plot_validation_panel(
    ensemble, observed=Q_monthly[site], log_space=True
)

Next steps

• Diagnostic plots for specific properties (ACF, FDC, spatial correlation) are available in synhydro.plotting -- see the API reference
• Algorithm details can help diagnose which statistical properties a generator is designed to preserve -- Algorithms
